Flow meter FMQ with IO-Link

The all-rounder for reliable flow measurement: FMQ with IO-Link

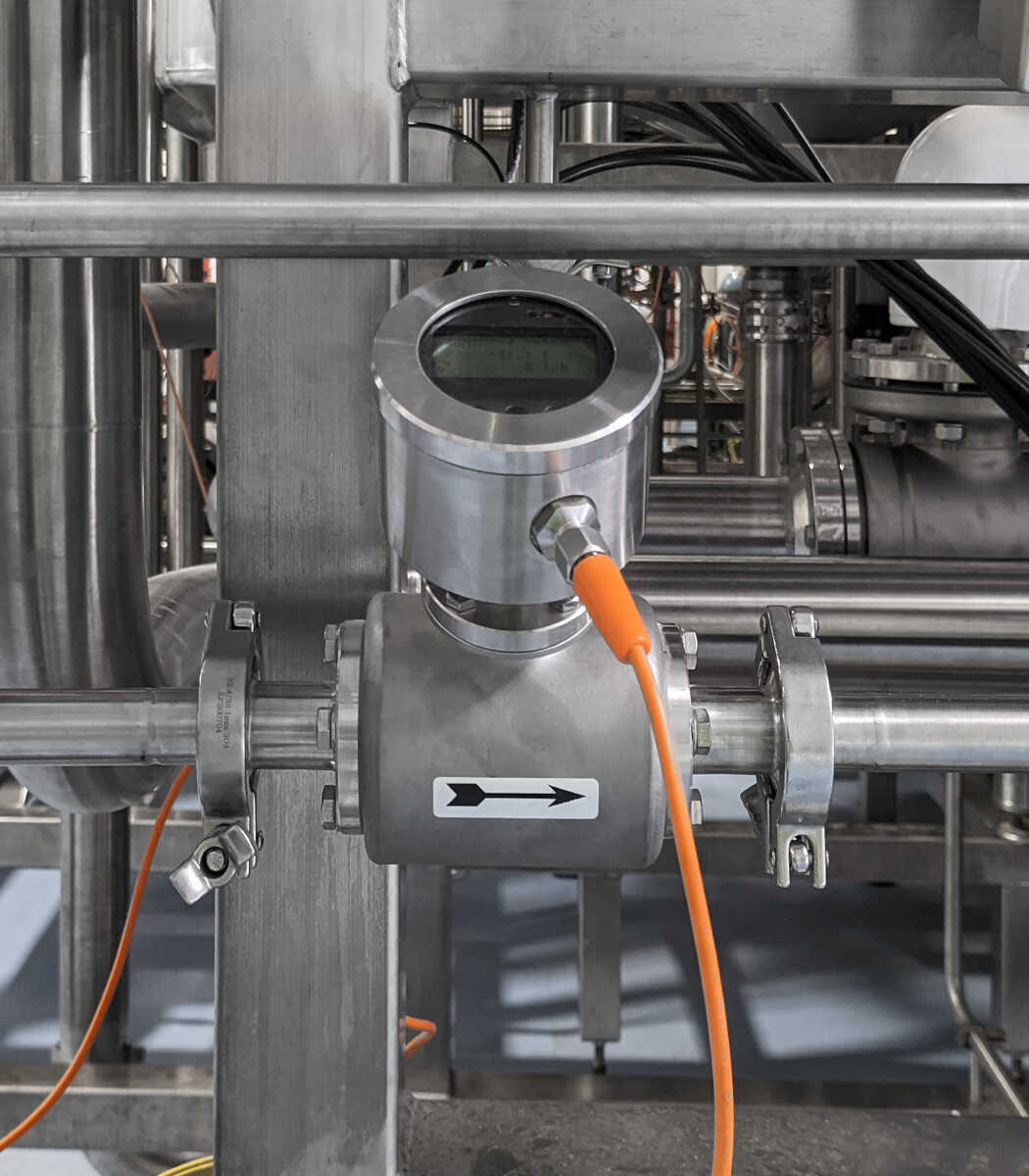

The electromagnetic flowmeter FMQ is an extremely versatile, robust, and reliable device for all types of liquids, slurries, and pastes. It has already been a very proven product from the Anderson-Negele sensor portfolio for hygienic applications for several years. The performance range with a measuring accuracy of ±0.5% ±2mm/s and a measuring range from 30 l/h to 640 000 l/h is tailored to almost all applications, including dosing and filling applications in the dairy, food and beverage industry.

Now with IO-Link: FMQ with Flex-Hybrid Technology (IO-Link + 4…20 mA)
The Flex hybrid technology with IO-Link and 4…20 mA combines the best of both worlds: Data can be transmitted from the sensor in digital or analog mode. The bidirectional communication enables status control at any time and preventive maintenance to avoid production downtimes. Installation and commissioning are time- and cost-saving thanks to plug-and-play technology, and the “Smart Replace Design” with automatic detection, configuration, and parameterization make sensor replacement easier than ever before.

Proven and field-tested for lasting precision

• Extremely compact: The reduced size of measuring body and electronics allows easy, vibration-resistant integration into almost all applications.
• Extremely robust: The magnetic field coils of the measuring system are encapsulated, which guarantees permanently reliable, precise measuring results even in very harsh environments with strong vibrations or pressure surges.
• Extremely reliable: The sensor is made entirely of 1.4404 stainless steel and is consistently protected against moisture, corrosion, and vibration. The measuring tube lining made of high-quality PFA is vacuum-tolerant and also suitable for cleaning systems with pigging.
• Remote version for improved specifications: The separation of the electronics in a distance of up to 10 metres enables process temperatures of up to 165 °C.
• Extremely simple commissioning and operation: User-friendly, rotatable display with optical buttons for quick and easy programming without opening the housing.
• Easy installation: Thanks to the manufacturer-independent process connection with standard aseptic flange, FMQ allows easy, hygienic installation according to 3-A for all pipe standards from DN10 to DN150.

Flow-How made by Anderson-Negele
Flow meters for the precise detection of the quantity or volume of media flowing in your systems are the basis for the automation, control, and monitoring of many processes. Typical applications are:

• Precise dosing when blending beverages or dairy products
• Recipe monitoring
• Monitoring manufacturing processes
• High-precision control of filling systems

Flow switches are used in almost all production facilities to monitor the technical safety of the systems and the correct operation of the processes. They immediately trigger an alarm if the flow is interrupted and are ideal for monitoring pump systems, filters, cooling circuits, CIP return flows, or for detecting misdirected media.

Anderson-Negele offers magnetic-inductive flow sensors, turbine flow sensors, flow switches and Coriolis devices. Due to the wide range of requirements, these devices are available in many configurations and with additional options. This enables the best solution for almost every product, process, purpose and application.
